To remove the Rear Fender you must remove 4 bolts and 2 push style rivits

Tools Required:
Socket Wrench
10mm Socket
Punch or small screw driver

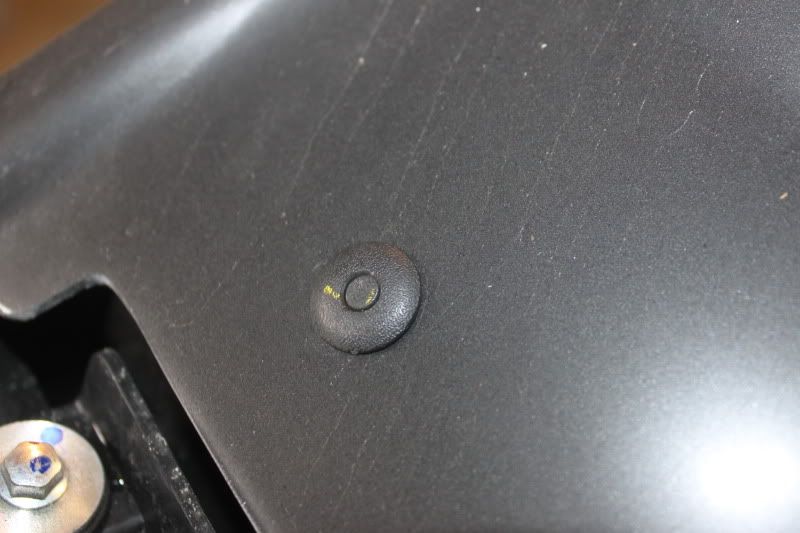

Push the center or the rivit and and it will slide right out.

Remove the 2 bolts on each side of the Fender, making sure the chrome sides dont fall and scratch the bike or themselves.

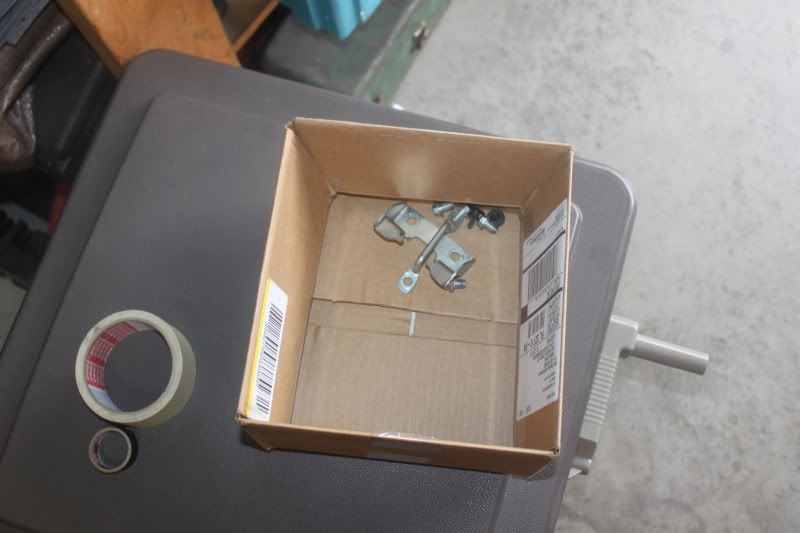

To ensure you done lose the pieces you can throw them in a box or put them back where they go on the frame



[kcl-labrat]

thanks schimbo, the pics are awesome



[schimbo stryker]

Thanks man.



[dreadly]

I thought this should be updated:
The two bolts on either side need to be removed as well.



[schimbo stryker]

done



[dreadly]

done

Can I assume the connection coming from the fender is under the left side cover?



[schimbo stryker]

Huh ?



[dreadly]

Huh ?

The connection from the rear tail lights is run under the fender, under the seat. I assume it terminates inside the left side cover that resides under the seat.



[SmokenJoe]

Huh ?

The connection from the rear tail lights is run under the fender, under the seat. I assume it terminates inside the left side cover that resides under the seat.

Yes.



[dreadly]

Thanks Joe



[sonic635]

Dumb question. Are those push pin rivets reusable?



[schimbo stryker]

yes



[sonic635]

Thanks
